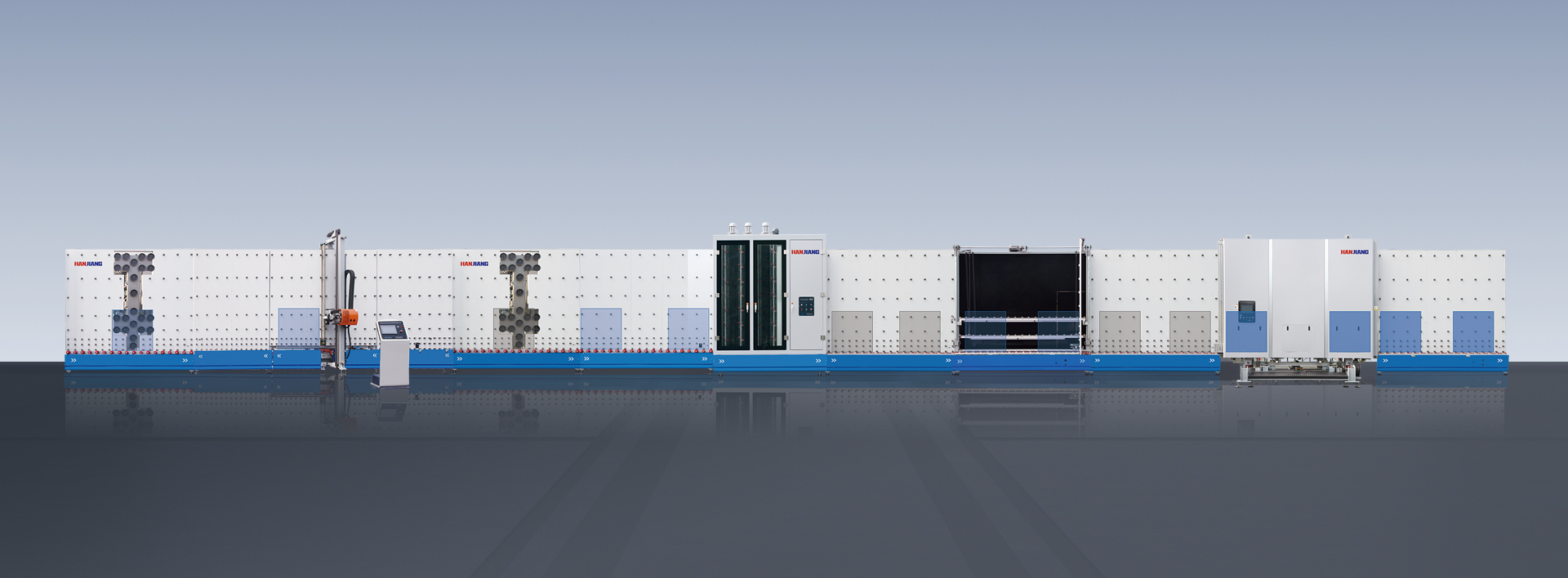

Introduction of high speed IG line

High speed IG line with double glass working position to process some small size IG (Insulated glass) /double glass such as metro glass or home appliance glass- refrigerator glass, etc. with high efficiency. Glass conveyor is divided by 2 smaller conveyor, so more glasses can be loaded on one IG line.

Feature

PLC control system with touch screen interface
Perfect washing performance for on/off line Low-E glass
Air knives automatic adjustment according to the thickness of glass
Optimal energy saving system with numerical intermittent working style
Inverter driving for Low-E brush rotatory speed
Automatic positioning system for spacer frame(*option)
Automatic checking system for glass dimension and thickness ; Adjust optimal closed chamber automatically to achieve superior gas filling efficiency and minimum gas consumption

Automatic positioning system for glass
Servo and Torque driving system for accurate pressing
High-tech press machine apply 3 or 4 axis linkage servo system; Accurate and efficient assembly-gas filling-press function
Automatic and accurate assembly for triple IG processing and selective function for gas filling
Ensure the argon content ≥85% (GB/T11944-2012 new national standard of China)
Automatically accurate positioning for 3 or 4 side step IG with gas filling
Remote communication function (*option)

Technical Data

Max glass size Normal mode：2500×3000mm(2000×2500mm)
Max glass size High-speed mode：1200×1200mm(800×800mm)
Min glass size: 300 × 450mm
Insulating glass thickness: 10-48 mm
Washing glass thickness: 3-19mm
Washing speed: 0-10m/min
Low-E brush : 6 units (3 units for Low-E)

Conveying speed: 45 m/min Press suction: 6kg/EA
Filling time: 3-5seconds (900×1200mm)
Environment temperature: 7-50℃
Power:3P 380V/1P+N 220V 50Hz 38kW
Air source:Air quantity: 0.8m3/ min Air pressure: 0.7MPa
Water conductivity: ≤30μs/cm
Cycle time: 45-35s/㎡
